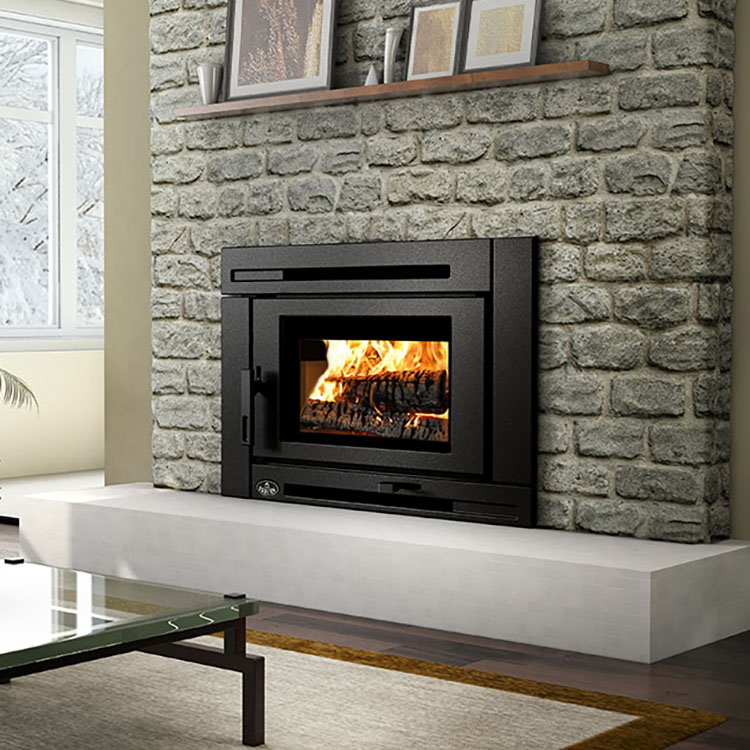

Matrix 2000 Wood Insert

This updated version of the Matrix wood insert will seduce you with an average particle emission rate as low as 1.54 g/h. The latest modifications made to this box are well in tune with the industry standards required for 2020. Although it retains a unique style that is both massive and sleek, we have reviewed the door mechanism to make it more functional. Adding a set of intermediate trim panels may be required to complete your masonry hearth. Always the same legendary Osburn quality.

Get a Quote Design Your Fire
Osburn | Matrix 2000 Insert productAvi

25 1/8”

36 ⅛”

    Weight :

    484 lbs

    Width :

    36 ⅛”

    Depth :

    23 1/8”

    Height :

    25 1/8”

    Fuel type :

    Dry cordwood

    Recommended heating area-ft² :

    500 - 2,100

    Overall firebox volume :

    2.4

    EPA loading volume-ft³ :

    2.02

    Flue Pipe Diameter :

    6”

    Maximum burn time :

    8 h

    Maximum heat output (dry cordwood) :

    75,000 BTU/h (22.0 kW)

    Overall heat output rate < :

    14,800 BTU/h (4.34 kW) to 28,600 BTU/h (8.38 kW)

    Average overall efficiency (EPA cribs/Douglas fir) :

    N.A

    Average overall efficiency (dry cordwood) :

    69% (HHV) / 74% (LHV)

    Optimum efficiency :

    77 %

    Average particulate emissions rate :

    1.54 g/h

    Average CO :

    89.4 g/h

    Minimum Opening - Width :

    28 ⅞”

    Minimum Opening - Depth :

    19 ⅝”

    Minimum Opening - Height :

    23 ¾”
